Images Panel

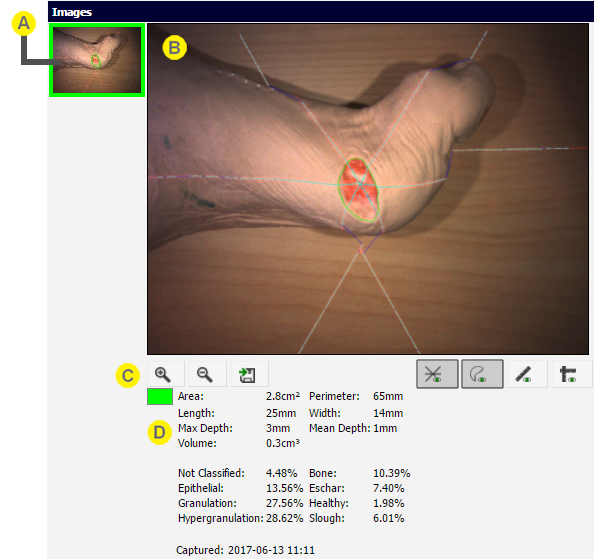

The Images panel shows the images that belong to the assessment that is currently selected in the Assessments Panel. A list of small thumbnails of each image captured in the assessment is shown on the left beside a larger view of the currently selected image on the right.

	Thumbnails The left side of the panel displays thumbnails of the images for the currently selected assessment. The selected image is surrounded by a box in the wound's outline color.
	Captured image A larger view of the currently selected image is shown on the right side of the panel
	Image controls You can: Zoom in. Select the Zoom In button . Zoom out. Select the Zoom Out button . Pan the image. Select, hold and move the image to pan. Export the image. A high resolution version of the image currently displayed will be exported. The appearance of wound boundaries, laser lines, etc, on the exported image will be determined by what is currently displayed on screen. In other words, if they appear on the main image then they will appear in the exported file. Therefore select your desired configuration before exporting. Show or hide the lasers. Select the Show/Hide Lasers button . A gray background to the button indicates lasers will be drawn. Show or hide the wound outline. Select the Show/Hide Outline button . A gray background to the button indicates wound outlines will be drawn. Show or hide the rulers. Select the Show/Hide Rulers button . A gray background to the button indicates rulers will be drawn. Show or hide the axes. Select the Show/Hide Axes button . A gray background to the button indicates axes will be drawn.
	The measurements as pertain to the image Displayed here are the wound measurements that have been calculated for the selected image.
